jb Different Lead Construction of JFG Axial Film Capacitors

Our JFG film capacitors have 4 types, JFGA (round type MKT), JFGB (flat oval type MKT), JFGC (round type MKP), JFGD (flat oval type MKP).

They are our very strong series, we have unbeatable prices offer, short lead time support, and excellent quality guarantee.

For JFG series lead construction, there are various choice, such as Straight Axial Lead (longer & cut type), Kink lead, Copper terminal as lead etc.
We are very professional in Axial lead MKT, MKP film capacitors, with more than 34 years production experience, we are very proud to tell you "jb Capacitors is your best choice for capacitors".

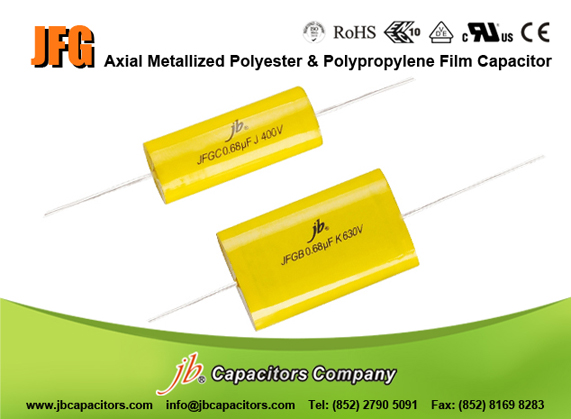

Below picture for your example: JFGB Flat oval type, metallized polyester film capacitors, with Copper terminal as lead.

jb JSW Motor Start Capacitors Primary Working Purpose

The primary purpose of a motor start capacitor is to briefly increase the motor starting torque as well as to allow a motor to be cycled on and off very quickly. It operates in the circuit by staying active long enough to allow the motor to be brought to 3/4 of it's full capacity. It is removed at that point by a switch in the circuit. You will find that the voltage rating is often one of these 110/125VAC, 125VAC, 220/275VAC, 250VAC, 330VAC.

Datesheet at: www.jbcapacitors.com/pdf/JSW-Motor-Starting-Capacitors.pdf

jb JSW Air Conditioner Compressor Start Motor Capacitor Size Table

jb produce AC motor starting capacitors for years, we have rich experience in film capacitors as well as Aluminum Electrolytic Capacitors.

We put JSW in our Aluminum Electrolytic Capacitors part, do you know why ? As motor starting capacitors use Aluminum foil as dielectric.

Below is our JSW series size table, if you need other capacitance or voltage, please feel free to contact with us, we can customize for you.

Voltage(VAC)

110/125VAC

125VAC

220/275VAC

250VAC

330VAC

Capacitance (μF)

Size D x H (MM)

Size D x H (MM)

Size D x H (MM)

Size D x H (MM)

Size D x H (MM)

50

34x60

34x60

34x70

34x80

42x80

75

34x60

34x60

34x70

34x80

42x80

100

34x60

34x60

34x70

34x80

42x80

150

34x70

34x70

34x70

50x100

50x100

200

40x70

40x70

40x70

50x100

50x100

250

40x90

40x90

45x100

50x100

50x100

300

40x90

40x90

45x100

50x100

50x100

350

45x90

45x90

45x100

50x100

50x100

400

45x100

45x100

45x100

50x100

50x100

500

45x100

45x100

45x100

50x110

---

600

45x100

45x100

50x100

50x110

---

700

50x100

50x100

50x100

---

---

800

50x100

50x100

50x100

---

---

1000

50x100

50x100

---

---

---

1200

50x100

50x100

---

---



More information please check below link:
www.jbcapacitors.com/Aluminum-Electrolytic-Capacitors/JSW-Motor-Starting-Capacitor.html

jb JSW AC Single Phase Motor Starting Capacitor Specifications

lMotor Starting Capacitor with cylinder shape and Aluminum case, normally the case will be covered by blue plastic material as the last process.

lCD60 Motor Starting Capacitor: Using aluminum foil as dielectric, which is the core, then fixed core asphalt filler.

lCD60 Motor Starting Capacitor: Helping A.C single-phase motor starting.

lClimate Category40/65/21

Items

Performance Characteristics

Operating Temperature Range ()

-40~+65

Rated Voltage

110~330V,AC

Capacitance Tolerance

-10%~+20%

Capacitance

50-1500μF

Loss Tangent

0~+20%

Withstand Voltage Between Terminals

1.2 times working voltage, no break down within 2s

Withstand Voltage Between Terminal And Case

2000VAC, no break down with 60s

www.jbcapacitors.com/Aluminum-Electrolytic-Capacitors/JSW-Motor-Starting-Capacitor.html

jb JSW AC Single Phase Motor Starting Capacitor Features

Electrical apparatue use metalized film with precisely quality control.

Low D.F. (dissipation factor), lower temperature rise.

High I.R. (insulation resistance) and small size.

Good capacitance stability, Excellent self-healigh property.

www.jbcapacitors.com/Aluminum-Electrolytic-Capacitors/JSW-Motor-Starting-Capacitor.html





jb JSW AC Single Phase Motor Starting Capacitor Applications

The specific type of capacitors with high electrical characteristics are widely used in single phase A.C. motors with rated voltage of 110V-330V and the frequency of 50Hz-60Hz to get high rotary torque at low starting current, and also the motor at a lower starting current under high torque.

www.jbcapacitors.com/Aluminum-Electrolytic-Capacitors/JSW-Motor-Starting-Capacitor.html

jb Capacitors Motor Running and Motor Starting Capacitors

jb Capacitors developed more production lines for motor capacitors since last year, now we have 28 types of JFS motor running capacitors, and JSW motor starting capacitors.

CBB60: Motor Running Capacitor (JFS-10~21)
CBB61: Motor Running Capacitor JFS-A~D, JFS-5~7, JFS-9)
CBB65: Motor Running Capacitor (JFS-22~24), and JFS-20, JFS-21 are fully encapsulated by retardant epoxy resin. No need the case cover anymore. By doing this, the products will have high reliable and smaller size.
CD60: Motor Starting Capacitor (JSW)

Well, what is the difference between motor running and motor starting capacitors? here below we summarize for you.

1. Different Performance: running mean keep working, while starting purpose just let the machine to start, and the working time only last for few seconds actually.
2. Different Stuffing: CBB60, CBB61 are filled with epoxy resin, CBB65 are filled with refined castor oil and wax, and CD60 are filled with asphalt.
3. Different Dielectric: The dielectric of starting capacitors is Aluminum foil, while in running capacitors, it is metallized polypropylene film.
4. Different Capacitance: Running capacitors is started from 1uF (1uF~150uF), while Starting capacitors is started from 50uF (50uF~1500uF).

Also different outer case (Plastic case, and Aluminum case), application, inner construction...

jb Axial Metallized Polyester & Polypropylene Film Capacitor

jb Capacitors produce good quality Axial MKT & MKP Film capacitors, 4 types,  JFGA~JFGD, axial leaded, cycloidal, flat shape.
Widely used in instruments and the DC& AC circuit of the household equipment and the fractional frequency circuit of acoustics systems.

Cross guide:
JFGA- Axial MKT film capacitor, cycloidal type    Cross to Arcotronics(Kemet) MKT A50, Wima: MKB 6, Vishay: MKT 1813, Epcos: B 32231-2, Iskra: KEU 1012, ICEL: MTR, MWR
JFGB- Axial MKT Film capacitors, Flat shape        ICEL: MWF

JFGC- Axial MKP film capacitors, cycloidal shape     Cross to  Arcotronics(Kemet) : MKP A70, Vishay: MKP 1839, Epcos: B32669, ICEL: MPW
JFGD- Axial MKP film capacitors, Flat Shape   Cross to Arcotronics(kemet): KP A72  , Vishay: MKP 1845  ICEL: MPF

jb Strong Offer CBB65 Motor Running Capacitor Aluminum Case

Firstly, we want to make a test with you . Do you know what is 2+2 terminals, 2+4 terminals, 4+4 terminals?
Well, from the name of terminal we know they are refering to CBB65 Motor Running Capacitors.

2 means 2 pins terminal, 4 means 4 pins terminal. Very interesting, right?
JFS - 22 : 2+2 terminals type, JFS - 23: 2+4 terminals type, JFS - 24: 4+4 terminals type

At the same time, we also can make different terminals at customer request. All we want to do is to provide most comprehensive products to jb customers.

Please refer to below picture, if you need more information, please feel free to contact with us.
www.jbcapacitors.com/Plastic-Film-Capacitors/JFS-Motor-Capacitor.html

jb Strong Offer CBB60 Motor Running Capacitor Plastic Case

In China, most factory produce CBB60 motor running capacitors with plastic case and with a cover. Why so ?
Firstly is cost down, secondly is most factories are selling the products to domestic market, most people should know domestic market do not need high requirement compared with overseas market.

However, we jb Capacitors Company main maket is Euopen countries. We must export superior quality to our customers. So we make CBB60 different with most China factories.

Our JFS - 20 and JFS -21 are fully encapsulated by retardant epoxy resin. No need the case cover anymore. By doing this, the products will have high reliable and smaller size.

Please refer to below picture, if you need more information, please feel free to contact with us.
www.jbcapacitors.com/Plastic-Film-Capacitors/JFS-Motor-Capacitor.html
